ELECTRIC MOTOR RUBRUKS MVM-PM1-125
Артикул: MVM-PM1-125
0,00 Р
Производитель:
RUBRUKS
• Nominal voltage, V - 360
• Peak power s2 30 s, kW – 220
• Peak moment s2 30 s, Nm - 419
• Dimensions (DxL), mm - 386x209
• Weight, kg - 82
• Peak power s2 30 s, kW – 220
• Peak moment s2 30 s, Nm - 419
• Dimensions (DxL), mm - 386x209
• Weight, kg - 82
Поделиться:
| Peak power s2 30 sec, kW | 220 |
| Rated power s1, kW | 125 |
| Rated voltage, V | 360 |
| Maximum speed, rpm | 9000 |
| Peak torque s2 30 sec, Nm | 419 |
| Nominal torque s1, Nm | 250 |
| Efficiency, % | 97 |
| Maximum current, A | 550 |
| Overall dimensions (DxL), mm | 386x209 |
| Weight, kg | 82 |
| Type of cooling system | liquid |
Available in intrinsically safe and explosion-proof versions
Производитель: RUBRUKS

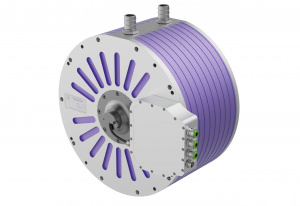

The RUBRUKS MVM-PM1-125 AC electric motor is a reversible synchronous electric machine with permanent magnets. The electric motor is designed to operate on a voltage of 360 V, providing a maximum torque of 419 Nm.
Suitable for electric vehicles, hybrid vehicles and agricultural machinery
Available in intrinsically safe and explosion-proof versions
