Nominal speed, rpm 1500 1800 2500 2800
Rated power s1, kW 21 26 36 40
cos phi 0,99 0,99 0,99 0,99
Efficiency, % 87,6 89,7 92 92,7
Frequency, Hz 125 150 208,3 233,3
Rated current, A 124 123 122 122
Overall dimensions (DxL), mm 306x240
Weight, kg 65
Type of cooling system liquid

Available in intrinsically safe and explosion-proof versions

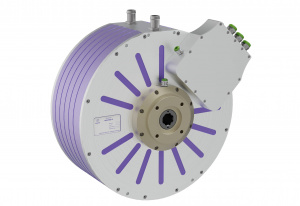

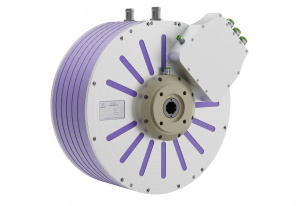

The RUBRUKS HVM-PM1-65 alternator is a permanent magnet synchronous electric machine. The generator is designed to generate electrical energy to supply on-board consumers.

Suitable for hybrid vehicles, special vehicles and agricultural machinery.

Available in intrinsically safe and explosion-proof versions

Оформить заказ на GENERATOR RUBRUKS HVM-PM1-65 вы можете в компании Рубрукс отправив заявку по почте, а также по телефону или в офисе компании .
