Maximum power, kW 22
Rated voltage, V 360
Input voltage, V 210…250
Output voltage, V 410…750
Maximum input current, A 32
Maximum output current, A 60

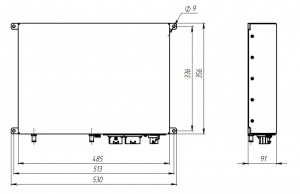

Overall dimensions, mm 485x356x91
Weight, kg 28
Interface CAN 2.0B
Type of cooling system liquid

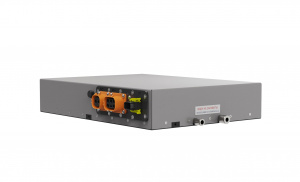

On-board charger RBC2-360-22 is designed to charge vehicle batteries from 1- and 3-phase household mains current.

The on-board charger has the ability to interact with the charging terminals of the IEC 62196, IEC 62196-2 and CCS Type 2 standards. This allows you to charge the vehicle both from a household electrical outlet using a special charging cable, and from a charging station.

Suitable for electric vehicles, hybrid vehicles and agricultural machinery.

Features:

  • CAN bus control
  • interaction with charging terminal (J1772)
  • setting output voltage/current via CAN bus
  • work in CC-CV mode
  • function of working with a resistive load (warm-up mode)
  • protection systems
Оформить заказ на Onboard charger RUBRUKS RBC2-360-22 вы можете в компании Рубрукс отправив заявку по почте, а также по телефону или в офисе компании .
