Rated voltage, V 1000

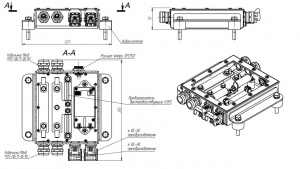

Overall dimensions, mm 255x227x55
Weight, kg 3,8
Interface CAN 2.0B
Number of power connections, pcs 2
Number of low-current connections, pcs 2
Insulation monitoring system available

The high-voltage power distribution unit RUBRUKS HPDU-600-iso is designed to connect high-voltage consumers with the battery module at one point.

Features:

  • voltage of connected circuits - up to 1000V
  • built-in insulation monitoring device for plus and minus buses
  • shielded cable glands
  • lid opening control (HVIL)
Оформить заказ на High-voltage power distribution unit RUBRUKS HPDU-600-iso вы можете в компании Рубрукс отправив заявку по почте, а также по телефону или в офисе компании .
