Voltage HV rated, V

600

Voltage LV rated, V

24

Nominal phase current, A

100

Maximum phase current, A

200

Power of the built-in charger, kW

6,6

Built-in DC-DC power, kW

4

Overall dimensions (LxWxH), mm

660х344х109

Weight, kg

35

Interface

CAN 2.0A/B

Cooling system type

liquid

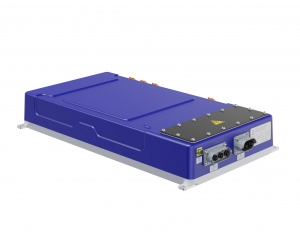

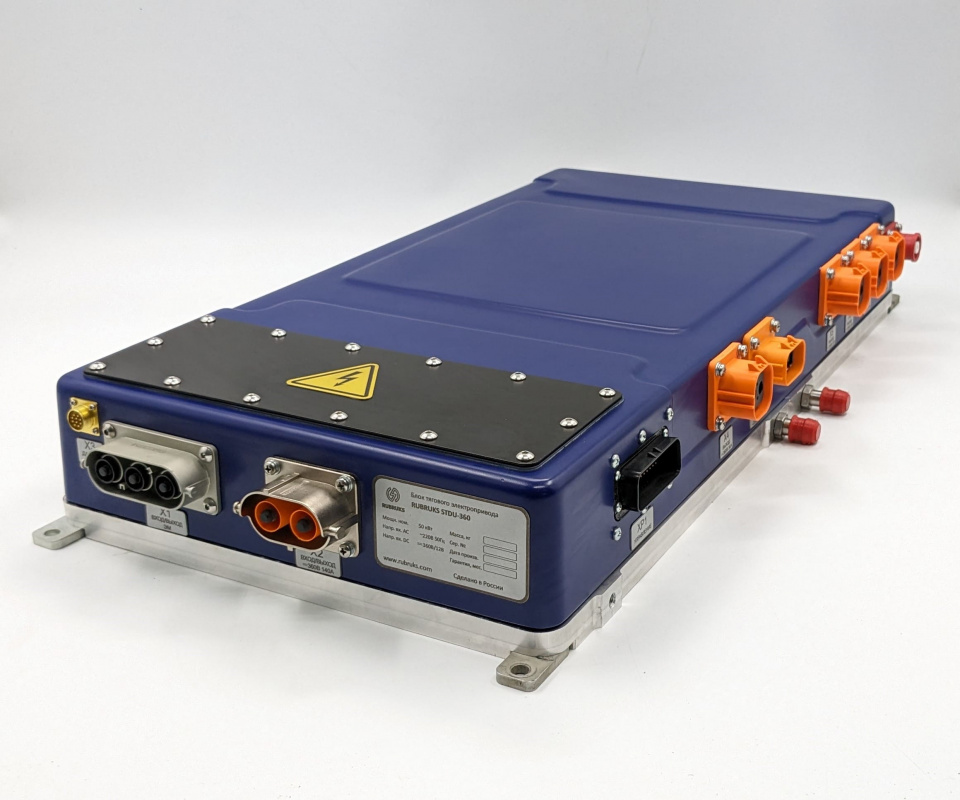

The RUBRUKS STDU-600 electric traction drive unit is designed for use as part of electric traction drive systems for electric and hybrid vehicles.
It is presented in the form of a single monoblock. Includes:
- traction inverter,
- on-board charger,
- DC-DC converter,
- main control unit,
- high-voltage switching unit.

The unified design of the block and the possibility of an optional choice of basic parameters make it possible to use it in systems of both passenger electric vehicles and medium-duty commercial electric vehicles, all-terrain passenger vehicles, water vehicles, etc.
